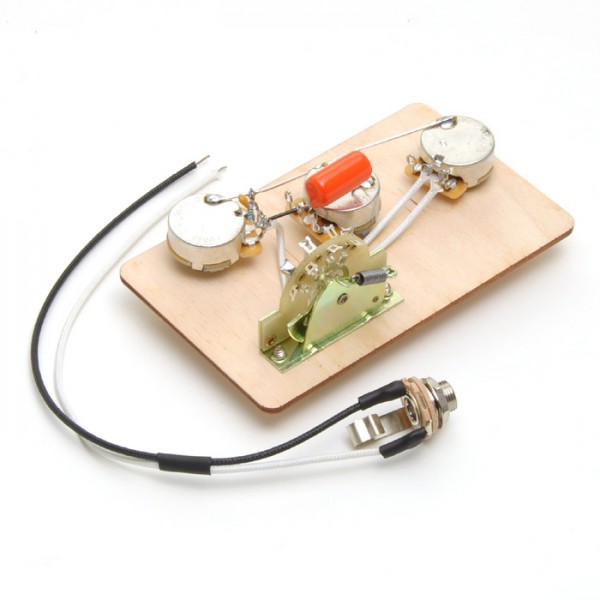

Rockinger 5-Way Multisound Assembly for Strat
-
Description
Housemade prewired assembly for 5-Way Strat. Wired with 22 AWG vintage-style wire. Includes 2 CTS 250k Split Shaft Potentiometers (10mm pickguard holes required), CTS NoLoad Blender-Pot, Central Lab (CRL) 5-Way Switch, Switchcraft 1/4" Mono Input Jack (prewired), 22nF Orange Drop Capacitor, Volume Mod, Wiring Diagram.
This version has 1 volume, 1 master tone, and a Blender pot. In the neck position you can blend the bridge pickup in as much as you want. In the bridge position you can blend the neck pickup in as much as you want. In positions 2 and 4 you can have all three pickups on at once.
Blender Pot on 10:
Position 1: Bridge
Position 2: Bridge & Middle
Position 3: Middle
Position 4: Middle & Neck
Position 5: Neck
Blender Pot on 1:
Position 1: Bridge w/ Neck Pickup Blended in
Position 2: Bridge & Middle w/ Neck Pickup Blended in
Position 3: Middle
Position 4: Middle & Neck w/ Bridge pickup Blended in
Position 5: Neck w/ Bridge Pickup Blended in
