Schaller BMFL 4L

Schaller BMFL 4L
Schaller BMFL 4L
Schaller BMFL 4L
: Schaller BMFL 4L : Schaller BMFL 4L : Schaller BMFL 4L
  • Order no. 0414C
    • €79.00

    :

    Farbe

    Order no.
    Price
    		Order quantity
    0414C Nickel
    From 1
    €79.00
    0414S Black
    From 1
    €89.00

    • Description

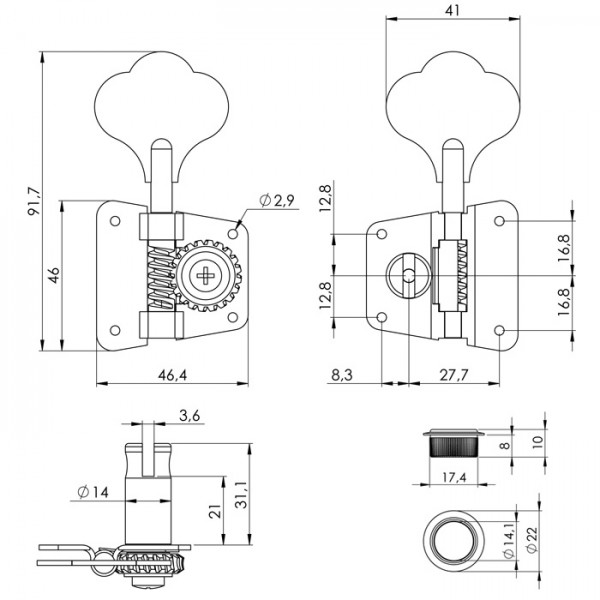

      4-left, for 17mm pegholes, 20:1 ratio, slotted string posts. Can be disassambled to reverse the shafts for left-hand pegheads. Screws and press-fit bushings included.



      • 4-left
      • Required peghole: 17mm
      • Ratio: 20:1
      • String post lenght: 31,1mm
      • Distance from baseplate to string hole: 21mm
      • Weight per piece: 103g
    Further Information

    Umbau einer BMFL- oder BML-Mechanik von "links" auf "rechts".

    Bild 1 (links oben)
    So sieht die normale linke Einzelmechanik aus.

    Bild 2 (rechts oben)
    Zahnradbefestigungsschraube lösen und die Mechanik auseinandernehmen. Bitte auf die Reihenfolge der Teile achten, sonst bleibt nachher noch was über.

    Bild 3 (links unten)
    Schneckenwelle rausdrücken und andersherum wieder reindrücken.

    Bild 4 (rechts unten)
    Einzelteile ran (Reihenfolge beachten) und wieder festschrauben. Fertig.
